Nginx 安装部署 & 项目实践

# 编译安装

# 1.安装依赖

需要 ROOT 权限和可访问的 YUM 源

yum install gcc gcc-c++ openssl openssl-devel pcre pcre-devel zlib zlib-devel patch make

# 2.编译安装

解压相应的 tar.gz 二进制包（ngx_http_proxy_connect_module 是正向代理访问 https 所需模块），然后将模块放在固定的位置，进入 nginx-1.20.1

mkdir -pv /app/service/nginx/modules && mkdir -pv /app/logs/nginx
tar -zxvf nginx-1.20.1.tar.gz && tar -zxvf ngx_http_proxy_connect_module-0.0.2.tar.gz
mv ngx_http_proxy_connect_module-0.0.2 /app/service/nginx/modules/ngx_http_proxy_connect
cd nginx-1.20.1
patch -p1 < /app/service/nginx/modules/ngx_http_proxy_connect/patch/proxy_connect_rewrite_1018.patch

1
2
3
4
5

打完补丁以后，进行编译安装

./configure \
--prefix=/app/service/nginx \
--conf-path=/app/conf/nginx/nginx.conf \
--error-log-path=/app/logs/nginx/error.log \
--http-log-path=/app/logs/nginx/access.log \
--user=app \
--group=app \
--with-compat \
--with-file-aio \
--with-threads \
--with-http_addition_module \
--with-http_auth_request_module \
--with-http_dav_module \
--with-http_flv_module \
--with-http_gunzip_module \
--with-http_gzip_static_module \
--with-http_mp4_module \
--with-http_random_index_module \
--with-http_realip_module \
--with-http_secure_link_module \
--with-http_slice_module \
--with-http_ssl_module \
--with-http_stub_status_module \
--with-http_sub_module \
--with-http_v2_module \
--with-mail \
--with-mail_ssl_module \
--with-stream \
--with-stream_realip_module \
--with-stream_ssl_module \
--with-stream_ssl_preread_module \
--add-dynamic-module=/app/service/nginx/modules/ngx_http_proxy_connect
make && make install

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

安装完成以后，上面已经指定了安装目录，我们 -v、-D 查看下版本信息和编译信息

/app/service/nginx/sbin/nginx -v

# 配置文件

# 1.基本结构

main ##全局配置，对全局生效 ├── events ##配置影响 Nginx 服务器或与用户的网络连接 ├── http ##配置代理，缓存，日志定义等绝大多数功能和第三方模块的配置 │ ├── upstream ##配置后端服务器具体地址，负载均衡配置不可或缺的部分 │ ├── server ##配置虚拟主机的相关参数，一个 http 块中可以有多个 server 块 │ ├── server │ │ ├── location ##server 块可以包含多个 location 块，location 指令用于匹配 uri │ │ ├── location │ │ └── ... │ └── ... └── ...

# 2.语法规则

配置文件由指令与指令块构成
每条指令以“;”分号结尾，指令与参数间以空格符号分隔
指令块以 {} 大括号将多条指令组织在一起
include 语句允许组合多个配置文件以提升可维护性
通过 ## 符号添加注释，提高可读性
通过 $ 符号使用变量
部分指令的参数支持正则表达式，例如常用的 location 指令

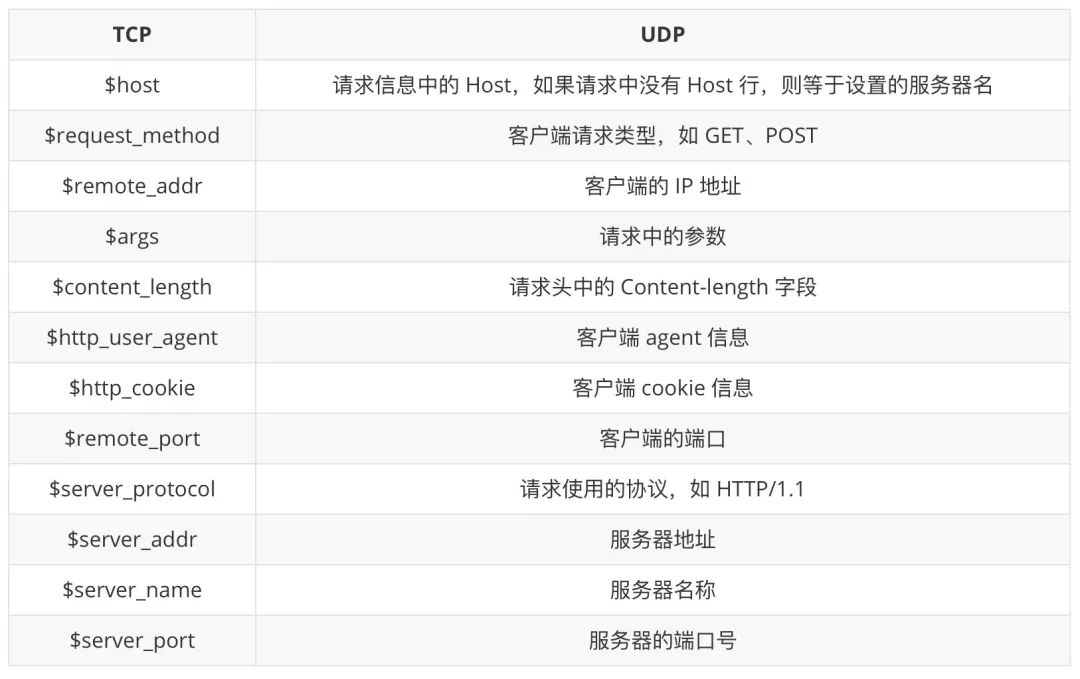

# 3.内置变量

常用的内置全局变量，可以在配置中随意使用

# 4.配置实例

配置文件：vi /app/conf/nginx/nginx.conf

worker_processes auto;
error_log /app/logs/nginx/error.log notice;
events {
  worker_connections 1024;
}
http {
  include mime.types;
  default_type application/octet-stream;
  log_format main '$remote_addr - $remote_user [$time_local] "$request" '
    '$status $body_bytes_sent "$http_referer" '
    '"$http_user_agent" "$http_x_forwarded_for"';
  ##access_log  /wechat/logs/nginx/error.log  main;
  sendfile on;
  ##tcp_nopush				on;
  ##隐藏错误页版本号
  server_tokens off;
  client_max_body_size 100m;
  client_body_buffer_size 128k;
  client_header_buffer_size 256k;
  large_client_header_buffers 4 256k;
  types_hash_max_size 3096;
  keepalive_timeout 60s;
  keepalive_requests 80920;
  ##支持 WebSocket
  map $http_upgrade $connection_upgrade {
    default upgrade;
    '' close;
  }
  proxy_connect_timeout 60;
  proxy_send_timeout 60;
  proxy_read_timeout 65;
  proxy_buffer_size 4k;
  proxy_buffers 4 256k;
  proxy_busy_buffers_size 256k;
  proxy_temp_file_write_size 256k;
  proxy_http_version 1.1;
  proxy_set_header Connection "";
  proxy_max_temp_file_size 128m;
  proxy_next_upstream error timeout invalid_header http_500 http_503 http_404;
  gzip on;
  gzip_min_length 1k;
  gzip_buffers 4 16k;
  gzip_http_version 1.0;
  gzip_comp_level 5;
  gzip_proxied any;
  gzip_types text/css application/javascript application/xml text/plain application/x-font-ttf ;
  server {
    server_name localhost;
    listen 80;
    ##日志文件
    access_log /app/logs/nginx/eteng_access.log main;
    error_log /app/logs/nginx/eteng_log error;
    if ($request_uri ~* .*\.\.\/.* ) {
      return 403 "forbidden";
    }
    ##默认主页
    location / {
      root	html;
      index	index.html index.htm;
    }
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

# 正向代理

PS.要使用到 Nginx 的正向代理功能访问 https 网站需要在编译时添加 ngx_http_proxy_connect_module 模块

mkdir /app/conf/nginx/vhost
vi /app/conf/nginx/vhost/proxy.conf

1
2

# 1.配置文件

server {
  resolver 223.5.5.5 114.114.114.114;
  resolver_timeout 10s;
  listen 10086;
  access_log  /app/logs/nginx/https_proxy_access.log;
  error_log   /app/logs/nginx/https_proxy_error.log;
  proxy_connect;
  proxy_connect_allow 443 563;
  proxy_connect_connect_timeout 10s;
  proxy_connect_read_timeout 10s;
  proxy_connect_send_timeout 10s;
  location / {
    proxy_set_header Host $host;
    proxy_pass $scheme://$host$request_uri;
    proxy_buffers 256 4k;
    proxy_max_temp_file_size 0k;
    proxy_connect_timeout 30;
    proxy_send_timeout 60;
    proxy_read_timeout 60;
    proxy_next_upstream error timeout invalid_header http_502;
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

# 2.使用验证

然后去其他机器进行测试：

curl -v https://qyapi.weixin.qq.com/cgi-bin/gettoken -x xxx.xxx.xxx.xxx:10086

设置当前用户环境变量：~/.bashrc，继承 /etc/profile 中的变量

echo 'export https_proxy=xxx.xxx.xxx.xxx:10086' >> ~/.bashrc
echo 'export no_proxy="localhost, 127.0.0.1, ::1"' >> ~/.bashrc
echo 'export no_proxy="xxx.xxx.xxx.xxx, xxx.xxx.xxx.xxx"' >> ~/.bashrc
source ~/.bashrc

1
2
3
4

# 日常运维

# 1.开机自启

创建开机启动命令脚本文件（需要 ROOT 权限）：vi /etc/init.d/nginx

##! /bin/bash
## chkconfig: - 85 15
PATH=/app/service/nginx
DESC="nginx daemon"
NAME=nginx
DAEMON=$PATH/sbin/$NAME
CONFIGFILE=/app/conf/$NAME.conf
PIDFILE=$PATH/$NAME.pid
scriptNAME=/etc/init.d/$NAME
set -e
[ -x "$DAEMON" ] || exit 0
do_start() {
$DAEMON -c $CONFIGFILE || echo -n "nginx already running"
}
do_stop() {
$DAEMON -s stop || echo -n "nginx not running"
}
do_reload() {
$DAEMON -s reload || echo -n "nginx can't reload"
}
case "$1" in
start)
echo -n "Starting $DESC: $NAME"
do_start
echo "."
;;
stop)
echo -n "Stopping $DESC: $NAME"
do_stop
echo "."
;;
reload|graceful)
echo -n "Reloading $DESC configuration..."
do_reload
echo "."
;;
restart)
echo -n "Restarting $DESC: $NAME"
do_stop
do_start
echo "."
;;
*)
echo "Usage: $scriptNAME {start|stop|reload|restart}" >&2
exit 3
;;
esac
exit 0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

# 2.其他命令

##创建软连接（root 权限运行）
ln -s /app/midware/nginx/sbin/nginx /usr/bin/

##启动 Nginx
nginx
##重载 Nginx
nginx -s reload
##重启 Nginx
nginx -s reopen
##关闭 Nginx
nginx -s stop

1
2
3
4
5
6
7
8
9
10
11

SSL 网站

server {
  listen 443 ssl;              ## TCP listener for HTTP/1.1
  listen 443 http3 reuseport;  ## UDP listener for QUIC+HTTP/3
  ssl_protocols       TLSv1.3; ## QUIC requires TLS 1.3
  ssl_certificate     ssl/www.example.com.crt;
  ssl_certificate_key ssl/www.example.com.key;
  add_header Alt-Svc 'quic=":443"'; ## Advertise that QUIC is available
  add_header QUIC-Status $quic;     ## Sent when QUIC was used
}

1
2
3
4
5
6
7
8
9
